114

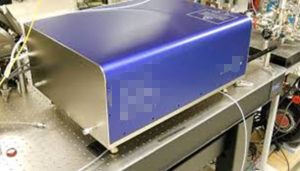

plused114nm image.

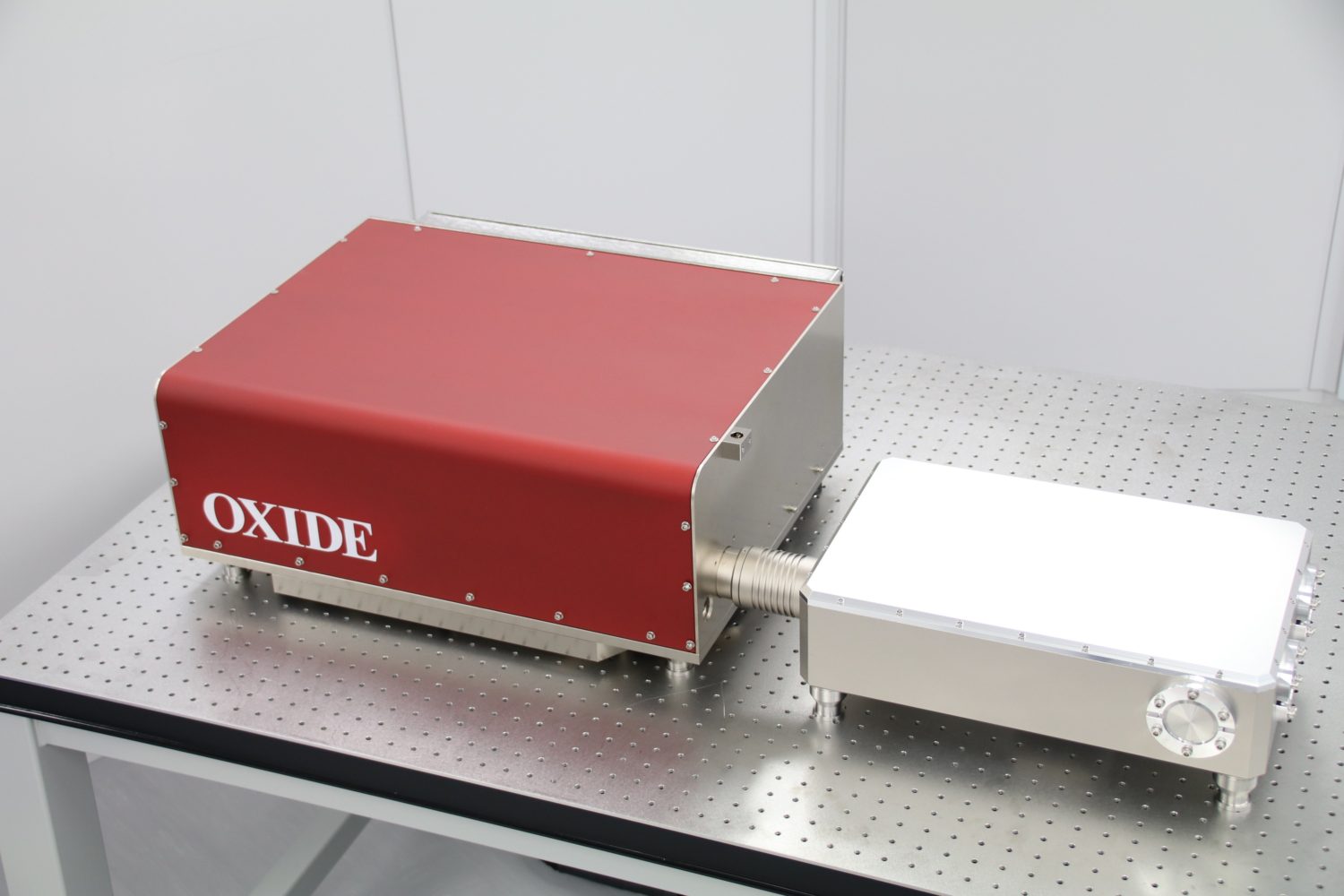

Model Vacuum Ultraviolet Pulsed114nm(11eV) Laser
Photon energy 10.897 eV(113.785 nm)
Pulse duration UV-2:< 50 psec、UV-3:< 20 psec
Repetition rate UV-2:< 0.5〜5 MHz、UV-3:< 50 MHz
Average power 5.7×10E12 photons/sec
Polarization Liner/horizontal
Beam size at sample < 0.25 mm FWHM
Beam height < 4.00 “(101.6 mm)
