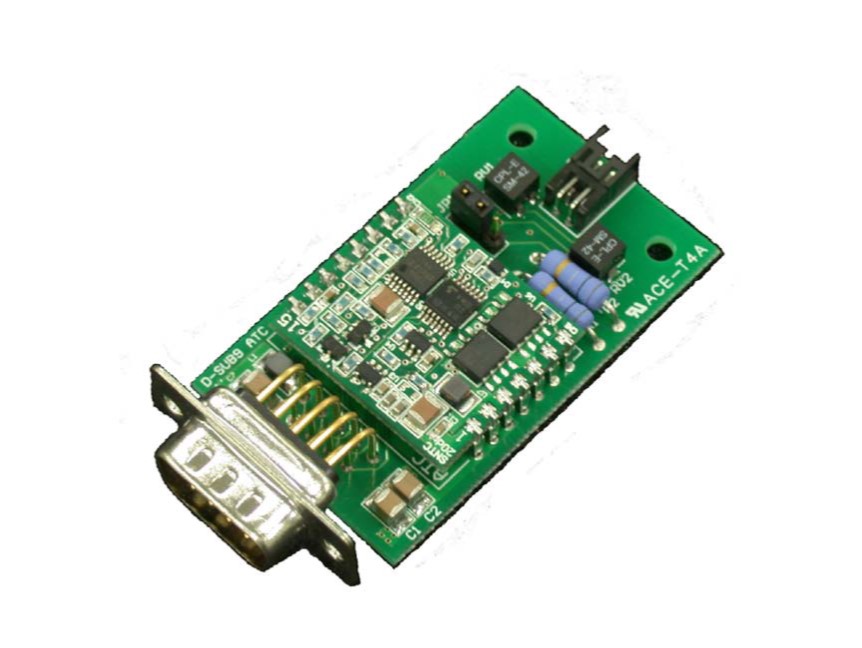

Temperature Controller (Board Type)
Model: DSUB9-DATC
Specification
| Temp. Controller Unit | Temperature Controller | 40+/-20℃ |
| Control Accuracy | 1/100℃ | |
| Unit Number | 1ch | |
| TEC (Volt、Current） | 5V,2.5A | |
| Thermistor | 10kΩ（＠25℃） B=3480 | |
| Control Input | （1）Tem.:0-4.5V(PIN3.7) （2）volume:when(1) is open select volume1or2 by short pin switch |
|
| Output Monitor | （1）Tem.: 0-4.5V(PIN3,7) （2）preset temperature：1-4V(PIN4,8) |
|
| Supply Voltage | DC5V,3A(PIN1,6) | |
| Size | 55(W)x 32(D)x 1.6(t)mm | |
| Connector | TEC & Thermistor | DF-11(Hirose) |
| Outside | DSUB-9P |
Environments
| Item | Specification | Remark |
| Operating Temperature | 10-40℃ | |
| Storage Temperature | 10-40℃ | not Dew Condensation |
