Frequad-HP
(266 nm/ 1W, 2W)

PRODUCTS

Frequad-HP
(266 nm/ 1W, 2W)

Frequad-HP <br />(266 nm/ 1W

Laser

CW laser

The Frequad series is a 266 nm deep-ultraviolet (DUV) continuous-wave (CW), single-frequency wavelength-conversion laser with a history of more than 20 years. Stable CW operation is achieved using our high-reliability wavelength-conversion module and our proprietary high-speed, precision voice-coil motor (VCM) laser. You can choose from three types (Frequad-HP, Frequad-M, Frequad-C) according to the desired output.

Material download
Contact

Features

(1) Module-based maintenance possible
The enclosure is designed for customer-replaceable modules (no need to return the laser).

(2) Long-term stable output and beam quality
OXIDE’s proprietary ultra-high-purity BBO crystals and their outstanding quality provide an expected lifetime of over 10,000 hours. Because the crystals degrade very little, high beam quality and long-term stable operation are ensured.

(3) Refined servo-lock technology
Our proprietary servo-lock technology, which uses a high-speed, high-precision voice coil motor (VCM), guarantees stable operation.

(4) Low power consumption
The high-efficiency wavelength-conversion laser system enables very low power consumption.

Specification

CW/Pulse

CW

Wavelength

266 nm

Output

1 W

Line width

< 0.005 pm

Output stability

< +/-1%/8 hrs

Extinction ratio

> 100:1

Beam quality

TEM00, M2 < 1.2

Polarization direction

Vertical, Linear

Beam diameter

3 mm ±0.3 mm

Divergence angle

< 0.2 mrad

Power Supply

AC 100-240 V, 50/60 Hz

Power Consumption

< 300 W

Cooling

Air

Dimensions (Head)

240 x 840 x 160 mm

Usage

Semiconductor Inspection
Raman Spectroscopy
Photoluminescence
Disc Mastering
Fiber Bragg Grating

Note

Required Equipment: Air Filter

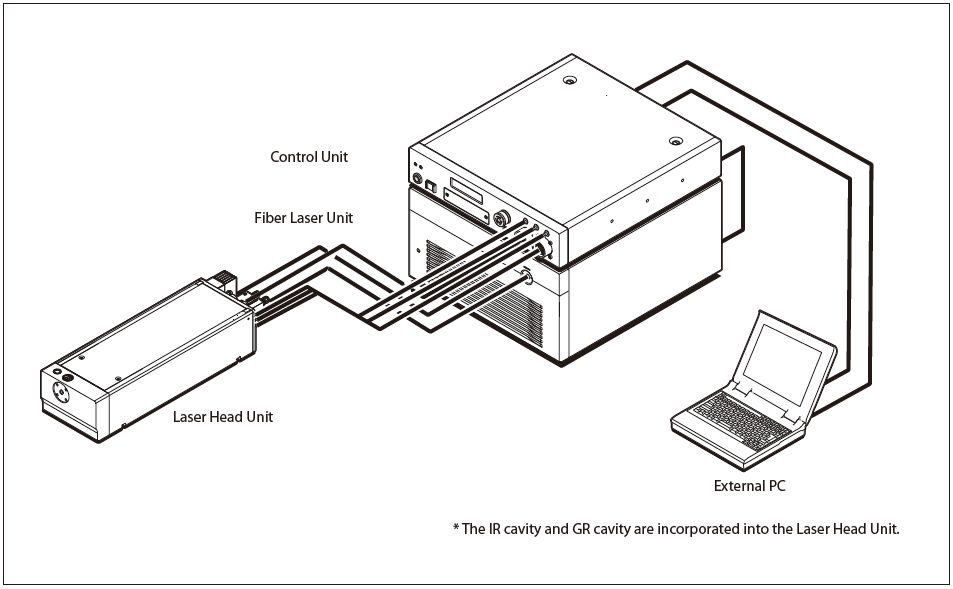

System Configuration

System Configuration
