1064

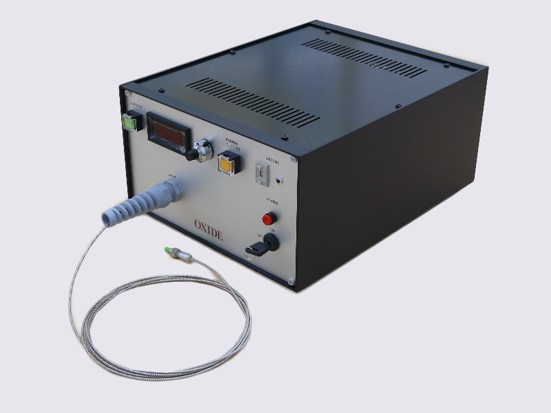

CW 1064nm Laser

Feature
  • Single mode fiber output (TEM 00)
  • Linearly polarized
  • CW>20W
Application
  • Optical tweezers
  • Frequency conversion
  • LIDAR
  • Solder Welding
  • Material characterization
Specification Wavelength 1064nm
Output power >20W
Line width <0.15nm
Operation mode CW
Delivery fiber length ~2.5 m
M^2 <1.2(TEM00)
MFD 6.6um(PM980)
Polarization Linear
Size 260mm(W) x 149mm(H)x330mm(L)
Power consumption   <150W
Control PC control
Option
  • Collimate output
  • Longer delivery fiber (~5m)
  • Longitudinal single mode
  • Customized wavelength (1040~1090nm)
  • Longer delivery fiber (~10m)

PM CW 1064 FL (OEM Version)

Feature

  • Simple configuration
  • Cost effective
  • PM 980 delivery (TEM00)
  • Relatively narrow linewidth
  • Good combination with the wavelength conversion device

Application

  • Light source for Frequency conversion
  • Solder welding
  • Inspection (optical tweezer)
  • Spectroscopic analysis

Specification (LM164)

Wavelength

1064 nm

Line width

< 0.15 nm

Output power

5W, 10W,  20 W

Operation mode

CW

Delivery fiber length

~ 2.5 m

M^2

< 1.2 (TEM00)

MFD

6.6 um (PM980)

Output connector

FC/APC (physical contact is not available)

Polarization

Linear

Size

200 mm X 100 mm X 16 mm

Required power supply

(not included in standard version)

DC: 12 V, 10.5 A (for 20W version)

Accessories

  • Collimate output
  • Heat sink
  • DC power supply
  • Customized wavelength (1040~1090nm)
  • Longer delivery fiber (~10m)

Passively Q-Switched Nd:YAG/Cr:YAG Microchip Laser

Feature

  • High peak power (MW)
  • Pulsed (< 1 ns)
  • Internal and External Trigger Mode

Application

  • Ablation
  • Mass spectroscopy
  • LIBS
  • LIDAR
  • Photo acoustic imaging

Specification

model

PQ11L

Wavelength

1064 nm

Pulse Energy

> 2 mJ

Peak Power

> 2 MW

Pulse Repetition Rate

20~100 Hz

Pulse Width (FWHM)

<1 ns

Head Size

 63mm (W) X 63 mm (H) X 58 mm (L) : Water Cooled

Power Supply Size

480 mm (W) X 249 mm (H) X 350 mm (L) : Water Cooled

Line Voltage

100V ±10% AC

Power consumption

< 250 W

Interface

USB

External Trigger

TTL

Option

  • Collimate output
  • Chamber mount
Technical Documents:
Passively Q-SW Microchip Laser.pdf
