355

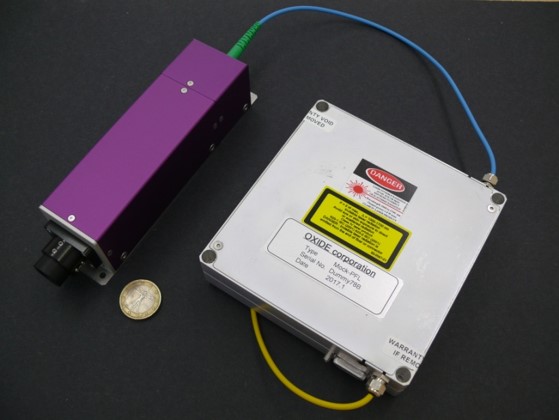

Pulsed DUV/UV Fiber Laser

Model DUV UV(High power)
Mode of operation Pulsed Pulsed
Wavelength 266nm 355nm
Pulse energy ~3.0μJ ~3.0μJ
Peak power ~3.0kW ~3.0kW
Average power ~200mW ~200mW
Power tunability 20-100%
Output Type Free space
pulse repetition rate 50kHz
Pulse duration ~1ns ~1ns
Polarization Linear(Horizonal) Linear(vertical)
Beam Quality Elliptical Circular
Fiber laser size 120(W)×27(H)×120(L)mm3
Convertor size 40(W)×40(H)×138(L)mm3 40(W)×40(H)×128(L)mm3
Based on PP-Mg:SLT/BBO PP-Mg:SLT/PP-LBGO

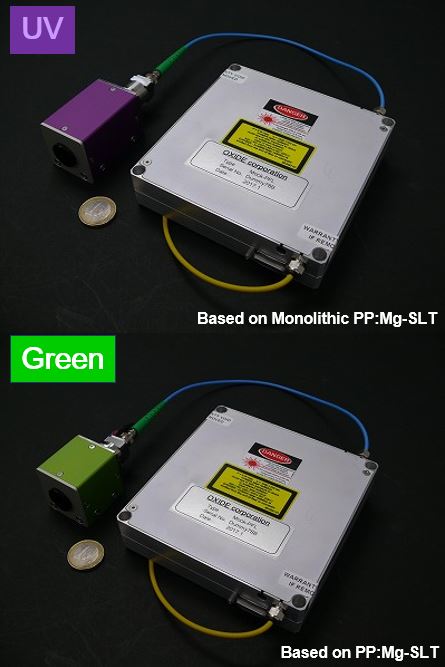

Pulsed UV/Green Fiber Laser

Model UV Green
Mode of operation Pulsed Pulsed
Wavelength 355nm 532nm
Pulse energy ~1.6μJ ~12μJ
Peak power ~1.6kW ~12kW
Average power ~80mW ~500mW
Power tunability 20-100%
Output Type Free space
pulse repetition rate 50kHz
Pulse duration ~1ns ~1ns
Polarization Linear(vertical)
Beam Quality(M2) <1.5 <1.4
Fiber laser size 120(W)×27(H)×120(L)mm3
Convertor size 36(W)×36(H)×97(L)mm3 36(W)×36(H)×40(L)mm3



Passively Q-Switched Nd:YAG/Cr:YAG Microchip Frequency Convertor Laser

model PQ12L PQ13LL PQ14LB
Wavelength 532 nm 355 nm 266 nm
Pulse Energy > 0.6 mJ > 0.5 mJ > 0.15 mJ
Peak Power > 0.75 MW > 0.63 MW > 0.25 MW
Pulse Repetition Rate ~100 Hz
Pulse Width (FWHM) <0.8 ns <0.6 ns <0.6 ns
Head Size 63mm (W) X 63 mm (H) X 178 mm (L) : Water Cooled
Power Supply Size 480 mm (W) X 249 mm (H) X 350 mm (L) : Water Cooled
Line Voltage 100V ±10% AC
Power consumption < 250 W
Interface USB
External Trigger TTL

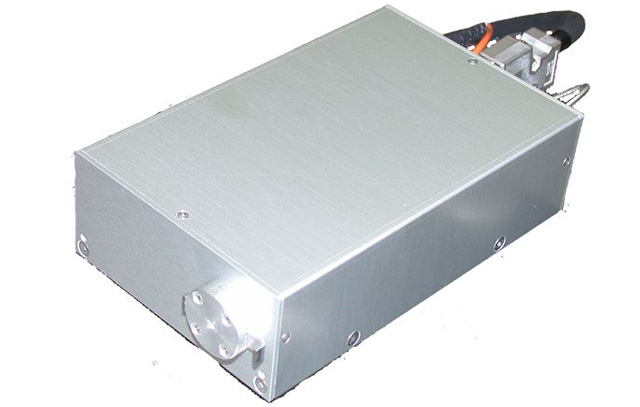

CW 355nm Laser

Wavelength 355nm
Free Space Output Power ~30mW
M2 <1.2
Pointing Stability(Staple temperature) <+/- 20µrad
Polarization Extinction Ratio(Ts:Tp) 1 : 100
Laser Head Dimensions (LxWxH)
(Head: No Heat Sink)
175mm x 68mm x 44mm
Consumption <300W

Pulsed UV/Green Fiber Laser

Features

  • Compact (portable)
  • High peak power
  • High repetition rate
  • Compatible design

Application

  • Underwater inspection
  • Raman spectroscopy
  • Aerosol detection
  • Sensing (LIDAR)

Specification(preliminary@25℃)

Model UV Green
Mode of operation Pulsed Pulsed
Wavelength 355nm 532nm
Pulse energy ~1.6μJ ~12μJ
Peak power ~1.6kW ~12kW
Average power ~80mW ~500mW
Power tunability 20-100%
Output Type Free space
pulse repetition rate 50kHz
Pulse duration ~1ns  ~1ns
 Polarization  Linear(vertical)
 Beam Quality(M2)  <1.5  <1.4
 Fiber laser size 120(W)×27(H)×120(L)mm3
 Convertor size 36(W)×36(H)×97(L)mm3  36(W)×36(H)×40(L)mm3

Option

  • Collimated output
  • Other Wavelength
  • Customized packages, OEM
  • Dual wavelength output (1064 nm/532 nm)

Above products are based on results obtained from a project commissioned by the New Energy and Industrial Technology Development Organization (NEDO).
