355/ 532/ 1064 nm

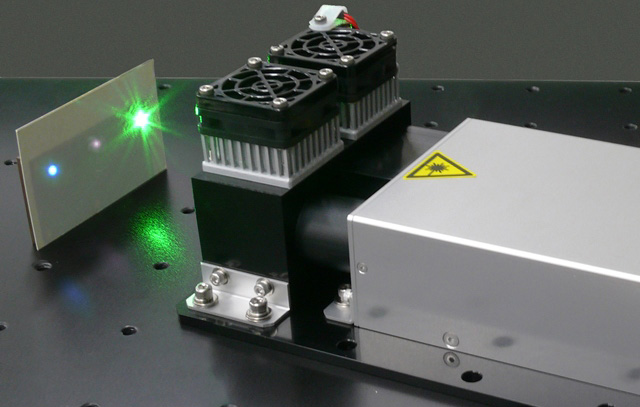

CW3

3-BAND CW Laser is outputted from one unit.

Wavelength

355nm (3rd Harmonic)

532nm (2nd Harmonic)

1064nm (Fundamental)

Output Power

355nm:    >30mW

532nm:    >500mW

1064nm:  >4000mW

Spatial Mode TEM00 (for all bands)
Beam Diameter φ2.6 +/- 0.3mm
Head Size 100(W) x 45(H) x 160(L)mm

 Features

  • UV,Visible,IR available from one unit
  • Small Footprint
  • Cost Benefits



Inspection for

  •  Optical Components
  • Coating Quarity
  • Particles on Substrate

Option

  • Band Selector Switch
  • Single Longitudinal Mode
  • Customization, OEM
  • Other Wwavelength

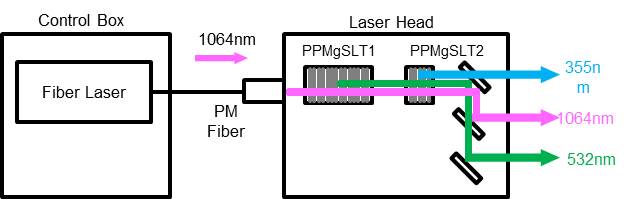

Configuration

3BAND configuration

3band-Ver1_130902
