351 nm
Application | Substitute for 351nm Krypton Laser | ||

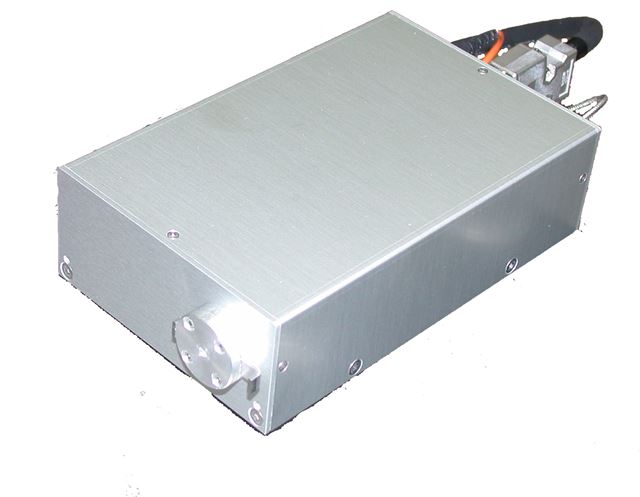

Head Size | 100(W) x 45(H) x 160(L)mm | ||
Optical Specification | Center Wavelength | 351 – 351.5nm | |
Output Power | ≧20mW | ||
Polarization Direction | Verticality | ||
Polarization Extinction Ratio(Ts:Tp) | 1 : 100 | ||
Beam Diameter | φ0.7mm ± 0.3mm | ||
Beam Waist Position | 500 ± 500nm from the emission part of unit |
