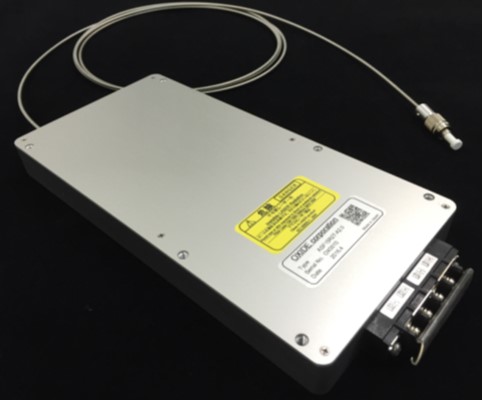

PM CW 1064 FL (OEM Version)
Feature
- Simple configuration
- Cost effective
- PM 980 delivery (TEM00)
- Relatively narrow linewidth
- Good combination with the wavelength conversion device
Application
- Light source for Frequency conversion
- Solder welding
- Inspection (optical tweezer)
- Spectroscopic analysis
Specification (LM164)
|
Wavelength |
1064 nm |
|
Line width |
< 0.15 nm |
|
Output power |
5W, 10W, 20 W |
|
Operation mode |
CW |
|
Delivery fiber length |
~ 2.5 m |
|
M^2 |
< 1.2 (TEM00) |
|
MFD |
6.6 um (PM980) |
|
Output connector |
FC/APC (physical contact is not available) |
|
Polarization |
Linear |
|
Size |
200 mm X 100 mm X 16 mm |
|
Required power supply (not included in standard version) |
DC: 12 V, 10.5 A (for 20W version) |
Accessories
- Collimate output
- Heat sink
- DC power supply
- Customized wavelength (1040~1090nm)
- Longer delivery fiber (~10m)
Technical Documents:
.pdf
